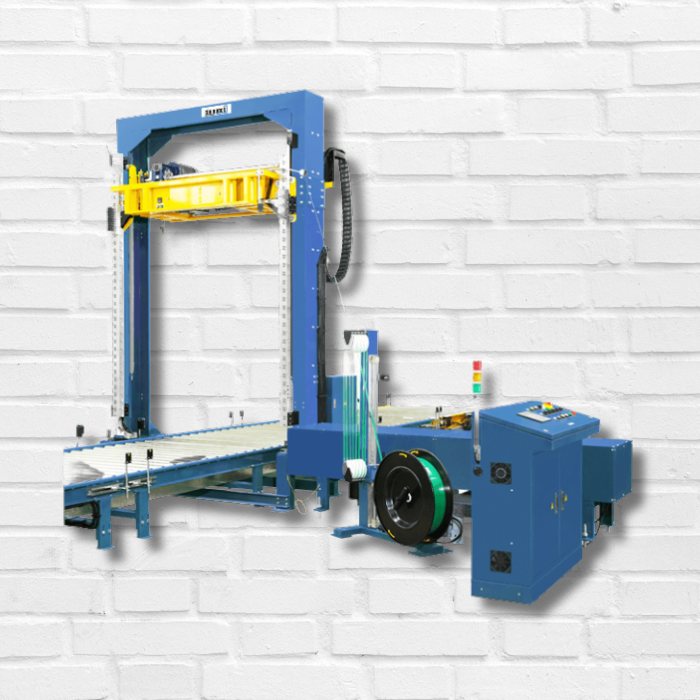

A-8U perform reliable high tension PET strapping to secure heavy loads during transport.
Best choice for:
Corrugated & Paper sheets industry
Plasterboard or Plywood board industry.( Combine auto skid loading device)
Paper Roll

Features

  • Max. tension: 220 kgs
  • Available for PET strap
  • Commercial PLC control
  • Top sealed strapping head
  • Individual control box with HMI touch panel
  • Dispenser adopts electromagnetic brake system
  • Auto detect for strap failure, short feeding & empty strap band

Specification

Arch Size (W x H) 1800 x 2250 (Customize)
Cycle Time 30 sec. / strap
Max. Tension (kgs) 220
Strap Width (mm) 9,12,15.5 (Specified)
Sealing Method Heating element
Sealing Position Top
Reel I.D. (mm) 406 (Specified)
Power Supply 220/230/380/415/440V,50/60Hz, 3PH
Power Consumption (kw) 3
Compressed Air 5 ~ 6 bars for auto skid loading device
Layout Dimension
(L x W x Hmm)
(50%,100%,150%,200%)
5062 x 1040 x 4269
