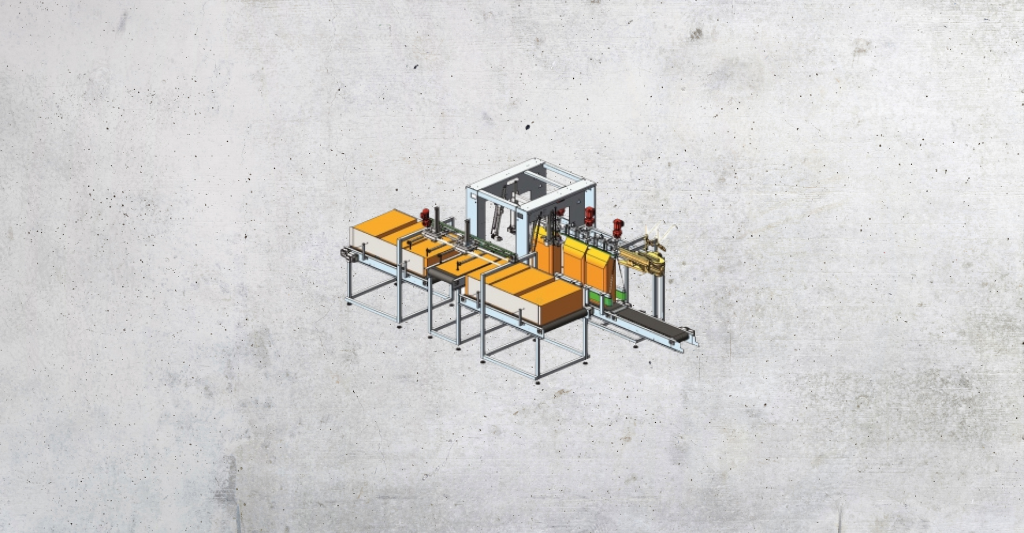

Bl Compacta Om - Open Mouth Bagger

The COMPACTA-OM bagging machine is a compact fully automatic packaging system. Its design permits the bagging of powders and granules into pre-formed open-mouth bags. The machine is specially studied to facilitate an easy cleaning. The bag spout is featured to allow its simple and quick change with regard to the different bag sizes. The integrated operator panel of ultimate generation permits an easy and friendly acknowledge of the process configuration and diagnostics. The multi-chamber magazine allows up to 4 bag piles with automatic forward feed of the full chamber in order to reduce. The operator presence having the scope to minimize dead time and optimize the operator’s functions.

FEATURES AND BENEFITS

  • Compact and sturdy design
  • Simple and through machine cleaning
  • Wide machine access to carry out quick and effective cleaning.
  • Machine designed especially for hygienic bagging and packaging operations.
  • Efficient bagging for low and middle production rates.
  • Fast changeover to handle different bag dimensions.
  • The machine is suitable for all common types of open mouth bags including gusseted and pinch-bottom from 5 to 50 kg.
  • System to catch the dust while filling, Filter excluded.
  • Machine working in Gross or Net weight mode.
  • Continuous bag transfer from bag pick up to bag closing avoids product contamination.
  • Reduced installation costs thanks to the integrated PLC controller.
  • Simple system operation with user-friendly operator panel

Specification:

  • Bag Types: All common open mouth bags
  • Bag material: Paper, Woven PP
  • Bag size: W300-600mm, L300-1100mm
  • Mechanical speed: up to 700 bags per hour
  • Power consumption: 20kW
  • Power Supply: 3 phase, 400V, 50 Hz
  • Air consumption: 40NL/cycle at 6 bar

OPEN MOUTH BAGGER UP TO 800B/H
